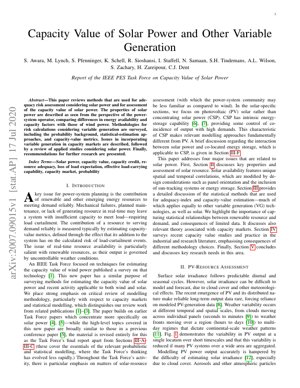

IEEE PES Task Force Report: Capacity Value of Solar Power and Variable Generation

1. Introduction

This report, authored by the IEEE PES Task Force, addresses the critical challenge of quantifying the contribution of solar power and other Variable Generation (VG) resources to power system reliability. As renewable penetration increases, traditional methods for assessing "capacity value"—a resource's ability to reliably meet peak demand—become inadequate. The paper serves as a comprehensive survey and critical review of methodologies for adequacy risk assessment and capacity valuation, building upon previous work focused on wind power while emphasizing the unique characteristics of solar PV.

Key Focus Areas: The report covers solar resource assessment, statistical and probabilistic modeling techniques, capacity value metrics (like Effective Load Carrying Capability - ELCC), issues in capacity market design, and a review of recent applied studies. It distinguishes itself by a strong emphasis on methodological critique and the specific challenges of solar, such as its diurnal pattern and correlation with demand.

2. PV Resource Assessment

Solar power generation is governed by surface solar irradiance, which exhibits predictable diurnal and seasonal cycles but is significantly modulated by stochastic elements like cloud cover. Unlike conventional generation or even wind, long-term, high-quality generation data for PV is often scarce, forcing reliance on modeled data derived from meteorological and satellite observations.

Unique Characteristics:

Temporal Pattern: Output is zero at night and peaks around midday, creating a specific coincidence (or lack thereof) with system peak demand, which often occurs in early evening.
Spatial Correlation: Cloud cover can affect large geographic areas simultaneously, reducing the benefits of geographic diversification compared to wind.
Design Factors: Panel orientation (fixed vs. tracking), tilt, and technology (PV vs. Concentrating Solar Power with storage) drastically alter the generation profile and its capacity value.

Accurate assessment requires sophisticated modeling of these factors and their statistical relationship with load.

3. Statistical Methods for Adequacy & Capacity Value

This section forms the methodological core of the report, detailing the probabilistic tools used to evaluate system adequacy with VG.

3.1. Probability Background

Adequacy assessment is fundamentally probabilistic, evaluating the risk of insufficient supply (Loss of Load). Key concepts include the Loss of Load Expectation (LOLE) and Expected Unserved Energy (EUE). The challenge with VG is modeling the joint probability distribution of variable resource availability and system demand.

3.2. Statistical Estimation Approaches

Due to data limitations, various estimation techniques are employed:

Time-Series Simulation: Using multiple years of historical or synthetic weather/power data to simulate system operation.
Analytical Methods: Using probability distributions (e.g., for generator outages, wind/solar output) to compute risk indices directly, though this is complex for correlated variables.
Importance of Correlation: The report stresses that ignoring the correlation between solar output and demand leads to significant overestimation of its capacity value. Methods must capture this dependency structure.

3.3. Capacity Value Metrics

The primary metric discussed is the Effective Load Carrying Capability (ELCC). It is defined as the amount of constant, perfectly reliable capacity whose addition to the system yields the same improvement in reliability (e.g., reduction in LOLE) as the addition of the variable resource.

Calculation: ELCC is determined iteratively by comparing the system's LOLE with and without the solar plant, and finding the equivalent amount of "firm" capacity that produces the same LOLE reduction. Other metrics like Capacity Credit (a fixed percentage) are noted as less accurate but simpler.

3.4. Incorporating VG in Capacity Markets

Capacity markets, designed to procure resources to meet future reliability targets, struggle to value VG appropriately. Key issues:

Performance Risk: VG cannot guarantee delivery during critical peak periods.
Market Design: Should VG receive a capacity payment based on its ELCC? How are penalties structured for non-performance?
Forward Procurement: Estimating ELCC years in advance is highly uncertain, depending on future weather patterns and load shapes.

The report critiques designs that fail to account for these uncertainties, potentially leading to under- or over-procurement.

3.5. Interaction with Energy Storage

The report briefly notes that co-located storage (as in CSP or PV+battery systems) can fundamentally alter capacity value by shifting energy from high-generation periods to high-demand periods. This turns a variable resource into a partially dispatchable one, increasing its ELCC but introducing new modeling complexities around storage operation and degradation.

4. Survey of Applied Studies & Practice

The report reviews literature and industry practices, finding a wide range of estimated capacity values for solar PV, typically between 10% and 50% of its nameplate capacity. This variation is attributed to:

Geographic Location: Solar profile alignment with local peak demand (e.g., higher in summer-peaking systems with afternoon air conditioning load).
Methodology Used: Studies using simplistic "capacity factor" approaches yield higher values than those using rigorous ELCC calculations that account for correlation.
System Penetration Level: The marginal capacity value of solar decreases as more is added to the system, as it increasingly addresses less-critical hours.

The survey underscores the lack of standardization, leading to inconsistent valuation across different markets and studies.

5. Conclusions & Research Needs

The report concludes that accurately valuing solar capacity requires sophisticated, probabilistic methods that capture its weather-dependent nature and correlation with load. It identifies key research gaps:

Improved long-term solar resource datasets and generation models.
Advanced statistical methods for modeling high-dimensional dependencies (solar, wind, demand, outages).
Capacity market designs that efficiently integrate ELCC-based valuations and handle performance risk.
Standardization of assessment methodologies to ensure comparability and transparency.

6. Original Analysis & Expert Commentary

Core Insight: The IEEE Task Force report is a crucial, if belated, acknowledgment that the power industry's toolkit for valuing reliability is fundamentally broken for the renewables era. Its core revelation isn't a new formula, but the stark warning that ignoring the joint statistical reality of sun, wind, and load leads to a dangerous illusion of grid resilience. This isn't an academic nuance; it's the difference between a robust energy transition and rolling blackouts during a future, renewables-dense drought or calm, cold spell.

Logical Flow: The report masterfully builds its case. It starts by deconstructing the solar resource itself—highlighting its predictable cycles but profound stochastic gaps—then systematically dismantles simplistic valuation proxies like capacity factor. It pivots to the mathematical heart of the matter: probabilistic adequacy assessment. Here, it correctly identifies the correlation between renewable output and system stress periods as the linchpin. A solar farm producing at noon in a winter-peaking system is nearly worthless for capacity; the same farm in a summer-peaking system is far more valuable. The report's logic culminates in exposing the misalignment between this nuanced, location- and time-dependent value (ELCC) and the blunt, one-size-fits-all mechanics of most existing capacity markets.

Strengths & Flaws: The report's strength is its uncompromising methodological rigor and its focus on the solar-specific challenge of diurnal mismatch, a point sometimes glossed over in wind-centric discussions. Its survey of applied studies effectively shows the wild inconsistency in practice, proving the problem is real and present. However, its primary flaw is its cautious, consensus-driven nature. It stops at identifying problems and listing research needs. It offers little direct critique of specific, failing market designs (e.g., PJM's capacity market struggles with renewables) or bold proposals for reform. It also underplays the seismic impact of storage. While mentioned, the transformative potential of batteries to reshape the capacity value calculus—turning non-firm solar into firm, dispatchable capacity—deserves more than a sidebar. The work of institutions like the National Renewable Energy Laboratory (NREL) has shown that PV-plus-storage can achieve ELCCs near 90%, a game-changer the report only hints at.

Actionable Insights: For regulators and system planners, the mandate is clear: immediately retire any rules that use average capacity factor to grant capacity credits. Mandate the use of probabilistic, ELCC-based studies for all resource planning and procurement. For market designers, the task is to create forward markets that can transact on probabilistic capacity, perhaps using financial derivatives or performance-based contracts that pay for availability during statistically defined "critical hours." For utilities and developers, the insight is to co-optimize solar with complementary resources (wind, storage, demand response) from the outset to create hybrid assets with superior and more stable ELCC. The future grid's reliability won't be built on megawatts of nameplate capacity, but on megawatts of statistically assured deliverability when it matters most. This report is the essential textbook for understanding that difference.

7. Technical Details & Mathematical Framework

The probabilistic foundation is key. The Loss of Load Expectation (LOLE) is defined as the expected number of hours (or days) per period where demand exceeds available capacity: $$\text{LOLE} = \sum_{t=1}^{T} P(\text{Capacity}_t < \text{Demand}_t)$$ Where $\text{Capacity}_t$ includes conventional generation (subject to forced outages) and the available output from VG at time $t$.

The Effective Load Carrying Capability (ELCC) of a solar plant is calculated as follows:

Calculate the baseline LOLE for the original system (LOLE_original).
Add the solar plant to the system and recalculate LOLE (LOLE_{with_solar}).
Add a block of perfectly reliable ("firm") capacity $C$ to the original system. Find the value of $C$ such that: $$\text{LOLE}_{\text{original} + C} = \text{LOLE}_{\text{with_solar}}$$
The ELCC is this value of $C$. Formally: $$\text{ELCC} = \{ C \, | \, \text{LOLE}(\text{Original System} + C_{\text{firm}}) = \text{LOLE}(\text{Original System} + \text{Solar}) \}$$

This requires modeling the time-series of solar output $P_{solar}(t)$ and its statistical dependence on demand $D(t)$. A common simplification that leads to error is assuming independence: $P(P_{solar}, D) = P(P_{solar})P(D)$.

Chart Concept - Diminishing Marginal ELCC: A crucial chart described in related literature shows the marginal ELCC of solar as a function of penetration. The curve is concave and decreasing. The first 100 MW of solar might have an ELCC of 40 MW. The next 100 MW added might only have an ELCC of 30 MW, as it serves less critical hours, and so on. This non-linear relationship is vital for long-term planning.

8. Analysis Framework: Example Case Study

Scenario: A system planner needs to evaluate the capacity value of a proposed 200 MW utility-scale PV plant in a summer-peaking region.

Framework Application:

Data Preparation: Assemble 10+ years of historical hourly load data for the system. Use a PV performance model (e.g., using NREL's System Advisor Model - SAM) with local historical weather data (solar irradiance, temperature) to generate a concurrent 10-year hourly output series for the proposed plant, considering its specific design (fixed-tilt, south-facing).
Baseline Adequacy Model: Create a probabilistic model of the existing generation fleet, including forced outage rates (FOR) for each conventional unit. Use a convolution method or time-series simulation to calculate the baseline LOLE (e.g., 0.1 days/year).
Model with Solar: Incorporate the hourly solar generation time-series as a negative load (i.e., create a "net load" series: Load_t - P_{solar, t}). Re-run the adequacy simulation with this net load to find LOLE_{with_solar}.
Calculate ELCC: Run an iterative search. Add a firm capacity block $C$ (e.g., starting at 50 MW) to the original system (not the net load). Recalculate LOLE. Adjust $C$ until LOLE_{original+firm} equals LOLE_{with_solar}. Suppose this occurs at $C = 65$ MW.
Result & Interpretation: The ELCC of the 200 MW PV plant is 65 MW, or 32.5% of its nameplate capacity. This value, not 200 MW, should inform capacity procurement decisions and market payments. The analysis would also show that the solar output is most valuable during hot summer afternoons, correlating well with air-conditioning load.

This case highlights the gap between nameplate and reliable capacity, and the necessity of a rigorous, data-driven simulation framework.

9. Future Applications & Directions

The methodologies outlined are evolving rapidly with technology and grid needs:

Hybrid Resources: The primary future direction is the valuation of solar-plus-storage as a single, dispatchable resource. Advanced modeling must co-optimize the PV and battery operation to maximize ELCC, considering battery cycle life and market signals. NREL's Hybrid Optimization and Performance Platform (HOPP) is pioneering this work.
Granular and Probabilistic Markets: Future capacity markets may transition from procuring MW to procuring "Reliability Units" defined by performance during statistically identified system stress events. This aligns payment with actual contribution to reliability.
Climate-Aware Planning: With climate change altering weather patterns and demand profiles (more extreme heat/cold), capacity valuation must become forward-looking and climate-informed, using ensembles of climate model projections rather than just historical data.
Standardization & Open Tools: Widespread adoption requires standardized datasets and open-source tools for ELCC calculation (e.g., extensions to the open-source GridLAB-D or REopt platforms) to ensure transparency and reduce methodological arbitrage.
Distribution-Level Capacity Value: As distributed solar (rooftop PV) proliferates, assessing its aggregate contribution to local and system-wide reliability becomes a new frontier, requiring models that capture behind-the-meter generation.

The ultimate goal is a dynamic, probabilistic, and technology-agnostic reliability management system that can efficiently value any resource based on its true contribution to keeping the lights on.

10. References

IEEE PES Task Force on Capacity Value of Wind Power, "Capacity Value of Wind Power," IEEE Transactions on Power Systems, vol. 29, no. 3, pp. 1363-1372, May 2014.
NREL. (2023). Annual Technology Baseline (ATB). [Online]. Available: https://atb.nrel.gov/
P. Denholm et al., "The Value of Energy Storage for Grid Applications," National Renewable Energy Laboratory (NREL), Technical Report NREL/TP-6A20-58449, 2013.
North American Electric Reliability Corporation (NERC), "Special Report: Effective Load Carrying Capability (ELCC) for Intermittent Resources," 2021.
International Energy Agency (IEA) PVPS, "Trends in Photovoltaic Applications 2023," Report IEA-PVPS T1-43:2023.
S. Pfenninger et al., "The importance of open data and software: Is energy research lagging behind?" Energy Policy, vol. 101, pp. 211-215, 2017.
R. Sioshansi, P. Denholm, and T. Jenkin, "A Comparative Analysis of the Capacity Value of Wind and Solar Generation," IEEE Transactions on Power Systems, vol. 27, no. 3, pp. 1407-1414, Aug. 2012.
