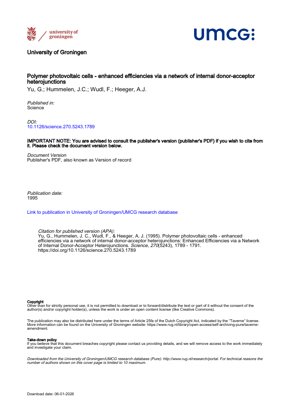

This document analyzes the seminal 1995 paper "Polymer photovoltaic cells - enhanced efficiencies via a network of internal donor-acceptor heterojunctions" published in Science by Yu, Hummelen, Wudl, and Heeger. The work represents a foundational breakthrough in organic photovoltaics (OPV), demonstrating that blending a semiconducting polymer (donor) with fullerene (C60) acceptors could improve energy conversion efficiencies by more than two orders of magnitude compared to devices made with pure polymer.
The core innovation was the creation of a "bicontinuous network" of internal heterojunctions within a bulk composite film, enabling efficient charge separation and collection—a concept that became the blueprint for modern bulk heterojunction (BHJ) solar cells.
The study leverages the principle of photoinduced electron transfer from an electron-donating material (D) to an electron-accepting material (A). Upon photon absorption, an exciton (bound electron-hole pair) is generated in the donor. If this exciton diffuses to a D-A interface within its lifetime, the electron can transfer rapidly to the lower-energy acceptor LUMO, effectively separating the charges.
Films were created by blending these materials from a common solution, leading to a phase-separated composite.
The photovoltaic devices had a simple structure: a composite active layer (MEH-PPV:C60 blend) was sandwiched between two electrodes. Typically, a transparent indium tin oxide (ITO) anode and a metal cathode (e.g., Al, Ca/Al) were used. The blend ratio and film processing conditions were critical for forming the optimal interpenetrating network.
~29%
electrons per photon
~2.9%
under simulated solar illumination
> 100x
vs. pure MEH-PPV devices
The paper reports two key metrics:
Chart/Figure Description (Based on Text): A pivotal chart in the paper would likely plot $\eta_e$ or photocurrent versus the concentration of C60 in the MEH-PPV blend. The data would show a dramatic increase—by orders of magnitude—with the addition of even 1% C60, followed by a peak at an optimal blend ratio (likely between 1:1 and 1:4 by weight). Beyond this optimum, efficiency would drop due to disrupted charge transport pathways. Another key figure would illustrate the proposed "bicontinuous network" morphology, showing interpenetrating domains of donor (polymer) and acceptor (fullerene) on a scale of ~10-20 nm, matching the exciton diffusion length.
The results proved that the quantum efficiency of charge separation approached unity, as the sub-picosecond electron transfer outcompeted exciton decay pathways.
The fundamental mechanism is ultrafast photoinduced electron transfer. Upon light absorption, MEH-PPV generates an exciton. If this exciton reaches a D-A interface, the electron transfers to C60's LUMO level, which is lower in energy by approximately 0.5-1.0 eV. This process, occurring in <1 ps, is described by Marcus electron transfer theory. The charge-separated state (MEH-PPV⁺/C60⁻) is metastable, preventing rapid recombination.
The revolutionary aspect was moving from a bilayer heterojunction (with a single planar D-A interface) to a bulk heterojunction. The blend spontaneously phase-separates during film formation, creating a three-dimensional, interpenetrating network of donor and acceptor phases. This maximizes the D-A interfacial area within the bulk, ensuring that photogenerated excitons are never more than a diffusion length (~10 nm) away from an interface, thereby solving the critical problem of short exciton diffusion lengths in disordered organic semiconductors.
The efficiency of a BHJ cell can be conceptually broken down using the following product:
$$\eta_{e} = \eta_{A} \times \eta_{ED} \times \eta_{CT} \times \eta_{CC} \times \eta_{V}$$
Where:
$\eta_{A}$ = Photon absorption efficiency.
$\eta_{ED}$ = Exciton diffusion efficiency to a D-A interface.
$\eta_{CT}$ = Charge transfer efficiency at the interface (~1 in this system).
$\eta_{CC}$ = Charge collection efficiency at the electrodes.
$\eta_{V}$ = Voltage factor (related to energy level offsets).
The BHJ architecture directly optimizes $\eta_{ED}$ by providing ubiquitous interfaces and improves $\eta_{CC}$ by providing continuous pathways for holes (through donor) and electrons (through acceptor) to their respective electrodes.
Yu et al. didn't just tweak a material; they redefined the architectural paradigm for organic photovoltaics. The move from a planar interface to a three-dimensional, nanoscale interpenetrating network was a masterstroke that directly attacked the fundamental bottleneck of organic semiconductors: pathetic exciton diffusion lengths. This was the "aha" moment that shifted the field from academic curiosity to a viable engineering challenge.
The paper's logic is impeccable: 1) Identify the problem (fast recombination in pure polymers). 2) Propose a molecular solution (photoinduced electron transfer to C60, proven in earlier work). 3) Identify the system-level problem (limited interface in bilayers). 4) Engineer a materials-level solution (the blended bulk heterojunction). 5) Validate with order-of-magnitude efficiency gains. This is a textbook example of translational research, bridging fundamental photophysics to device engineering.
Strengths: The conceptual clarity of the BHJ is its greatest strength. The 2.9% efficiency, while low by today's standards (~18% for OPVs), was a seismic shift that proved the concept's potential. The choice of C60 was inspired, given its superb electron-accepting properties, later validated by the widespread adoption of PCBM ([6,6]-Phenyl C61 butyric acid methyl ester), a soluble C60 derivative from the same research group.
Flaws & Context: Viewed through a 2024 lens, the paper's limitations are clear. It lacks detailed morphological characterization (AFM, TEM) that later became standard. The stability of these early devices was likely abysmal—a critical flaw for commercialization that wasn't addressed. The efficiency, though groundbreaking, was still far from the ~10% threshold then considered necessary for applications. As noted in the NREL chart of record efficiencies, OPVs took nearly 15 years after this paper to consistently breach 10%, highlighting the long, hard road of optimization that followed this foundational insight.
For modern researchers and companies: Morphology is king. This paper's legacy is the relentless focus on controlling the nanoscale phase separation of the blend. Today's leading OPVs use sophisticated solvent additives, thermal annealing, and novel acceptors (like ITIC non-fullerenes) to perfect the BHJ network that Yu et al. first conceived. The lesson is that a brilliant device concept must be coupled with exquisite materials processing control. Furthermore, the field's subsequent struggle with stability underscores that efficiency alone is a mirage; operational lifetime is the real metric for commercial viability. Any team working on next-gen PV must design for stability from day one, a lesson learned painfully after this pioneering work.
Framework for Evaluating a Novel PV Material/Architecture:
This paper implicitly establishes a framework that is still used today to evaluate new PV concepts:
Conceptual Code Example (Pseudocode for BHJ Efficiency Simulation):
// Pseudo-code for a simplified Monte Carlo simulation of exciton fate in a BHJ
initialize_3D_grid(blend_ratio, domain_size, exciton_diffusion_length)
generate_morphology() // Creates donor/acceptor phases
for each absorbed_photon:
exciton = create_exciton_at_random_location(donor_phase)
for step in range(max_diffusion_steps):
exciton.random_walk()
if exciton.position at donor_acceptor_interface:
if electron_transfer_probability() > random():
charge_separated_state = True
break // Successful charge separation
if exciton.lifetime_exceeded():
exciton.recombines() // Loss pathway
break
if charge_separated_state:
// Simulate charge transport to electrodes
if find_percolation_path_to_electrode(hole, donor_network) and
find_percolation_path_to_electrode(electron, acceptor_network):
collected_carriers += 1
calculated_efficiency = collected_carriers / total_photonsThe BHJ concept pioneered here has far outgrown its initial context. Current and future directions include:
