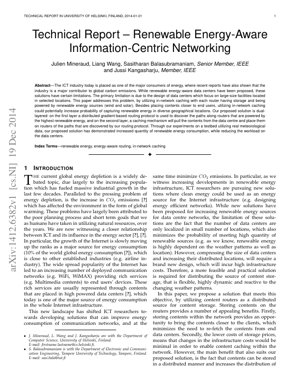

Technical Report: Renewable Energy-Aware Information-Centric Networking

1. Introduction

The Information and Communication Technology (ICT) sector is a significant and growing consumer of global energy, contributing substantially to carbon emissions. Traditional approaches to greening ICT have focused on large, centralized data centers powered by renewable sources. However, this model is limited by geographical constraints and the intermittent nature of renewable energy (e.g., solar, wind). This paper, "Renewable Energy-Aware Information-Centric Networking," addresses this gap by proposing a novel, distributed architecture. The core idea leverages in-network caching within routers—each equipped with storage and powered by local renewable sources—to bring content closer to users and intelligently utilize geographically dispersed green energy.

2. Proposed Solution

The proposed framework is a dual-layered architecture designed to maximize the use of renewable energy across a network of content routers.

2.1. System Architecture Overview

The system transforms the network from a mere packet-forwarding infrastructure into a distributed, energy-aware content delivery platform. Each router acts as a potential cache node, powered by its own renewable energy source (solar panels, wind turbines). A central controller or distributed protocol coordinates between energy availability and content placement.

2.2. Layer 1: Renewable Energy-Aware Routing

This layer is responsible for discovering paths through the network that maximize the use of routers currently powered by renewable energy. It employs a distributed gradient-based routing protocol. Each router advertises its available renewable energy level. Routing decisions are made by forwarding requests towards neighbors with higher "green energy gradients," effectively creating paths that are "greener." The core metric can be defined as the renewable energy availability $E_{ren}(t)$ at router $i$ at time $t$.

2.3. Layer 2: Content Caching Mechanism

Once a high-renewable-energy path is identified, this layer proactively or reactively pulls popular content from the origin data center and caches it on the routers along that path. This serves two purposes: (1) it reduces future latency for users near that path, and (2) it shifts the energy consumption for serving that content from the possibly brown-energy-powered data center to the green-energy-powered routers. Cache placement and replacement policies are weighted by the renewable energy status of the router.

3. Technical Details & Mathematical Model

The routing decision can be modeled as finding a path $P$ from a client to a content source (or cache) that maximizes the total renewable energy utility. A simplified objective function for path selection could be:

$\max_{P} \sum_{i \in P} \alpha_i \cdot E_{ren}^i(t) - \beta \cdot Latency(P) - \gamma \cdot Hop\_Count(P)$

Where:

• $E_{ren}^i(t)$: Renewable energy available at router $i$ at time $t$.
• $\alpha_i$: Weight factor for router $i$'s energy (could be based on carbon intensity).
• $Latency(P)$: Estimated end-to-end latency of path $P$.
• $Hop\_Count(P)$: Number of hops in path $P$.
• $\beta, \gamma$: Tuning parameters to balance energy use with performance.

The caching strategy might use a utility function for content $c$ on router $i$: $U_i(c) = \frac{Popularity(c)}{Size(c)} \times E_{ren}^i(t)$. Content with higher utility is prioritized for caching.

4. Experimental Setup & Results

4.1. Testbed Configuration

The authors built a testbed using real meteorological data (solar irradiance and wind speed) from diverse geographical locations to simulate the renewable energy output for each router. Network topologies were simulated to represent realistic ISP networks. Content request patterns followed a Zipf-like distribution.

4.2. Key Performance Metrics

• Renewable Energy Consumption: Percentage of total energy drawn from renewable sources.
• Data Center Load Reduction: The decrease in requests served directly by the origin data center.
• Cache Hit Ratio: The rate at which requests are served by in-network caches.
• Latency: Average content delivery time.

4.3. Results & Analysis

The experiments demonstrated a significant increase in renewable energy consumption compared to a baseline ICN architecture without energy-aware routing. By directing traffic through "green" paths and caching content there, the system effectively reduced the workload on the primary data center. A key trade-off observed was a potential slight increase in average latency or path length, as the shortest path is not always the greenest. However, the caching component helped mitigate this by bringing content closer to the edge over time. The results validate the feasibility of the dual-layer approach in balancing energy and performance goals.

5. Analysis Framework & Case Example

Scenario: A video streaming service during daytime in Europe. Framework Application:

1. Energy Sensing: Routers in Southern Europe (high solar yield) report high $E_{ren}$.
2. Gradient Routing: User requests from Central Europe are routed towards these high-energy Southern nodes.
3. Proactive Caching: The trending video is cached on the routers along this established "green corridor."
4. Subsequent Requests: Later requests from users in Central or even Northern Europe are served from the green caches in the South, reducing trans-European traffic and utilizing solar energy.

Non-Code Workflow: This can be modeled as a continuous feedback loop: Monitor Energy -> Update Gradient Maps -> Route Requests -> Adapt Cache Placement -> Repeat.

6. Core Insight & Analyst Perspective

Core Insight: This paper isn't just about green networking; it's a shrewd bet on the financialization of carbon and latency. It posits that future network cost models will internalize carbon credits and energy source volatility, making a router's renewable energy status a first-class routing metric, as critical as bandwidth or hop count. The authors are essentially proposing a dynamic, distributed "carbon arbitrage" engine for data.

Logical Flow: The logic is compelling but hinges on a specific future: 1) Widespread deployment of renewable-powered edge nodes (a tall order for most ISPs focused on cost). 2) A regulatory or market push that makes "brown" bandwidth more expensive than "green" bandwidth. The technical flow—using energy gradients for routing and caching—is elegant, reminiscent of how TCP avoids congestion, but applied to a carbon budget.

Strengths & Flaws: The strength is its visionary, holistic system design. It moves beyond isolated data center efficiency, like Google's efforts documented in their data center efficiency reports, to a network-wide optimization. However, the flaw is its practicality. The overhead of real-time, fine-grained energy state propagation and coordination could be prohibitive. It also assumes content is cacheable and popular—less effective for unique, real-time data. Compared to hardware-focused approaches like the use of photonic switching or specialized low-power chips, this is a software-heavy solution that may face deployment inertia.

Actionable Insights: For telecom operators, the immediate takeaway isn't full deployment but piloting. Start by instrumenting network nodes in microgrids or solar-powered base stations and applying this logic to non-latency-critical backup or sync traffic. For policymakers, the paper is a blueprint for how carbon-aware SLAs could be technically enforced. The research community should focus on simplifying the control plane—perhaps borrowing from the CycleGAN philosophy of learning mappings between domains (network topology and energy maps) to reduce explicit protocol overhead.

7. Future Applications & Research Directions

• Integration with 5G/6G Edge Computing: MEC (Multi-access Edge Computing) servers are natural candidates for this model, hosting applications and caching content based on local renewable energy availability.
• Blockchain & Decentralized Energy Grids: The energy-aware routing state could be recorded on a ledger, enabling transparent verification of "green data transfer" for corporate sustainability reporting.
• Machine Learning for Prediction: Using weather forecasts and historical data to predict $E_{ren}(t+\Delta t)$ and pre-migrate content or schedule computations, similar to load balancing in cloud data centers.
• Standardization of Green Metrics: Developing IETF or IEEE standards for advertising router energy source and carbon intensity, akin to the "nutrition label" for network paths.
• Quantum Networking Considerations: As quantum repeaters emerge, their significant cooling energy needs could be integrated into such an energy-aware routing framework from the outset.

8. References

1. Mineraud, J., Wang, L., Balasubramaniam, S., & Kangasharju, J. (2014). Technical Report – Renewable Energy-Aware Information-Centric Networking. University of Helsinki.
2. Google. (n.d.). Google Data Centers: Efficiency. Retrieved from https://www.google.com/about/datacenters/efficiency/
3. Zhu, J., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. In Proceedings of the IEEE international conference on computer vision (pp. 2223-2232).
4. Bari, M. F., et al. (2013). Survey of Green Cloud Computing. Journal of Supercomputing.
5. International Energy Agency (IEA). (2022). Data Centres and Data Transmission Networks. IEA, Paris.
