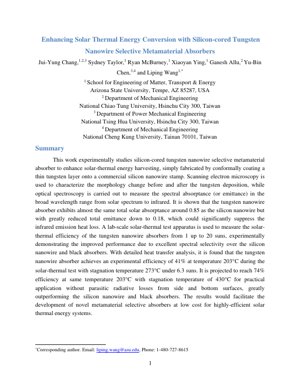

Experimental Study of Silicon-Cored Tungsten Nanowire Selective Metamaterial Absorbers for Enhanced Solar-Thermal Conversion

1. Introduction & Overview

This work presents an experimental investigation into a novel, cost-effective metamaterial absorber for solar-thermal energy conversion. The core innovation lies in the fabrication of a silicon-cored tungsten nanowire selective absorber, created by conformally coating a thin tungsten layer onto a commercial silicon nanowire stamp. This approach aims to achieve high solar absorptance while simultaneously suppressing infrared thermal emission losses, a critical challenge in solar-thermal systems.

The primary goal is to enhance the efficiency of solar-thermal energy harvesting by improving the spectral selectivity of the absorber surface, moving beyond traditional blackbody absorbers.

2. Methodology & Fabrication

The research methodology combines innovative fabrication with rigorous optical and thermal characterization.

3. Experimental Results & Analysis

4. Technical Details & Mathematical Modeling

The efficiency of a solar-thermal absorber is governed by its ability to maximize solar gain and minimize thermal loss. The net useful power per unit area can be expressed as:

$P_{net} = \alpha_{sol} G_{sol} - \varepsilon_{IR} \sigma (T^4 - T_{amb}^4) - h (T - T_{amb})$

Where:

• $\alpha_{sol}$ is the total solar absorptance.
• $G_{sol}$ is the incident solar irradiance (can be concentrated, e.g., 6.3 suns).
• $\varepsilon_{IR}$ is the total hemispherical emittance in the infrared.
• $\sigma$ is the Stefan-Boltzmann constant.
• $T$ is the absorber temperature.
• $T_{amb}$ is the ambient temperature.
• $h$ is the convective heat transfer coefficient.

The tungsten nanowire's success stems from engineering a high $\alpha_{sol}$ (~0.85) while achieving a very low $\varepsilon_{IR}$ (~0.18), directly minimizing the radiative loss term $\varepsilon_{IR} \sigma T^4$, which dominates at higher temperatures.

5. Analysis Framework & Case Study

Framework for Evaluating Novel Solar Absorbers:

1. Fabrication Scalability & Cost: Assess the process complexity (e.g., E-beam lithography vs. coating a commercial stamp). This work scores highly on using a simple, scalable method.
2. Spectral Performance Metrics: Quantify $\alpha_{sol}$ and $\varepsilon_{IR}$. The key figure of merit is the selectivity ratio, but high $\alpha$ and low $\varepsilon$ are individually critical.
3. Thermal Stability: Evaluate performance under prolonged high-temperature operation (not deeply covered in the provided excerpt but crucial for real applications). Tungsten has a high melting point, suggesting good potential.
4. System-Level Integration: Projected efficiency (74%) considers eliminating parasitic losses—a practical engineering challenge that forms the next validation step.

Case Study - Comparison:
Baseline (Si Nanowire): High $\alpha_{sol}$ (~0.85) but also high $\varepsilon_{IR}$ -> High radiative loss at temperature.
Innovation (W-coated Si Nanowire): Maintains high $\alpha_{sol}$ (~0.85) but achieves low $\varepsilon_{IR}$ (~0.18) -> Drastically reduced radiative loss, leading to higher operating temperature and efficiency for the same solar input.

6. Critical Analysis & Expert Insights

Core Insight: This isn't just another nano-fabrication paper; it's a pragmatic blueprint for bridging the "valley of death" between lab-scale metamaterials and industrial solar thermal systems. The genius move is bypassing expensive, low-throughput nanofabrication (a common critique of early metamaterial work, as seen in the challenges of scaling photonic structures for radiative cooling described by Raman et al., 2014) by leveraging a commercial, off-the-shelf silicon nanowire stamp as a template. The real value is in the conformal tungsten coating—a relatively standard industrial process—that transforms a high-emittance Si structure into a spectrally selective workhorse.

Logical Flow: The research logic is impeccable: 1) Identify the need for low-cost, selective absorbers (citing the field's reliance on complex lithography). 2) Propose a fab-friendly solution (coat a ready-made nanostructure). 3) Characterize to prove the optical principle works (high α, low ε). 4) Validate under real thermal flux (solar-thermal testing up to 20 suns). 5) Use modeling to project real-world potential (74% efficiency). This is a textbook example of applied materials science.

Strengths & Flaws:
Strengths: The cost-effective fabrication pathway is the standout. The experimental data is solid, showing clear improvement over controls. The projection to 74% efficiency provides a compelling target for engineers.
Flaws: The provided excerpt is silent on long-term thermal and chemical stability. Will the thin tungsten layer oxidize or diffuse into silicon at 400°C+? How does it withstand thermal cycling? These are non-negotiable questions for deployment. Furthermore, the "projected" 74% efficiency hinges on eliminating all parasitic losses—a significant engineering challenge that is glossed over.

Actionable Insights: For investors and R&D managers, this work de-risks the adoption of metamaterial absorbers. The immediate next step isn't more fundamental science; it's environmental durability testing (damp heat, thermal cycling per IEC standards) and prototyping of a full-scale, insulated receiver module to validate the 74% projection. Companies in concentrated solar power (CSP) or industrial process heat should pilot this coating on existing receiver substrates. The research community should now focus on alternative coating materials (e.g., refractory ceramics like TiN, ZrN) that might offer similar optical properties with potentially better stability or lower cost than tungsten.

7. Future Applications & Directions

• Concentrated Solar Power (CSP): Integration into the receiver tubes of parabolic trough or central tower systems to operate at higher temperatures and efficiencies, potentially reducing the levelized cost of electricity (LCOE).
• Industrial Process Heat: Providing medium-to-high temperature heat (150-400°C) for manufacturing processes like food processing, chemical production, or desalination.
• Solar Thermoelectric Generators (STEGs): Coupling the absorber with thermoelectric modules to generate electricity directly from high-temperature gradients.
• Solar Fuel Production: Providing the high-temperature heat required for thermochemical reactions to produce solar fuels like hydrogen.
• Research Directions:
  1. Long-term stability and lifetime testing under operational conditions.
  2. Exploration of other refractory metal or ceramic coatings (e.g., Titanium Nitride - TiN) on similar or alternative nanostructured templates.
  3. Development of roll-to-roll or other high-throughput coating processes for mass manufacturing of large-area absorber panels.
  4. System-level optimization, including advanced vacuum insulation and heat transfer fluids, to realize the projected high efficiencies.

8. References

1. Bello, F., & Shanmugan, S. (2020). [Relevant review on nanostructures for energy].
2. Raman, A. P., Anoma, M. A., Zhu, L., Rephaeli, E., & Fan, S. (2014). Passive radiative cooling below ambient air temperature under direct sunlight. Nature, 515(7528), 540-544. (Cited for context on scaling challenges in metamaterials).
3. Wang, H., et al. (2015). [Study on tungsten grating absorbers].
4. Li, W., et al. (2015). [Study on tungsten nanowire absorbers].
5. Zhu, J., et al. (2017). Radiative cooling of solar absorbers using a visibly transparent photonic crystal thermal blackbody. Proceedings of the National Academy of Sciences, 114(52), 13621-13626. (For comparison with spectral management approaches).
6. International Electrotechnical Commission (IEC). IEC 62862-3-2:2021 Solar thermal electric plants - Part 3-2: Systems and components - General requirements and test methods for parabolic-trough collector. (Relevant standard for durability testing).
